100W簡易12V轉220V逆變器電路圖(含PCB圖)

該電路的電源逆變器功率100W，這個電路的設計很簡單，方法很好。
該電路輸出220V交流50Hz，輸出不超過100W。當你申請外，因此必須有小功率的變頻器100W進行修改，從電池12V的工作電力給高公平的工作。如果您是新用戶的電子或想節約或想建立電子項目自行使用。我懇請告知該電路，因為它使用的晶體管數量，bc557或替換，執行振蕩器。然后有功率晶體管2N3055數進行驅動線圈變壓器變換電壓給高上去交流220V 50Hz的電力約100瓦不超過。當應用于變壓器2a-3a。畫面細節和PCB板電路模型。

This Circuit Power Inverter 100W, It Easy And Good Ideas.

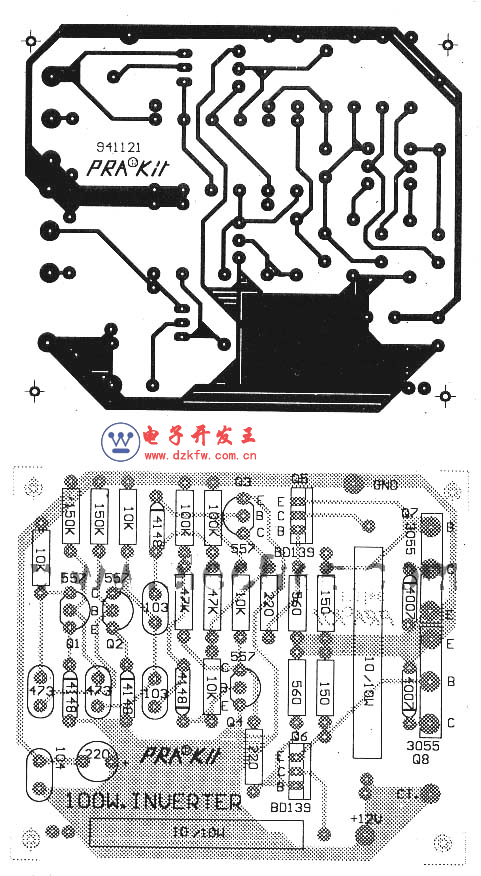

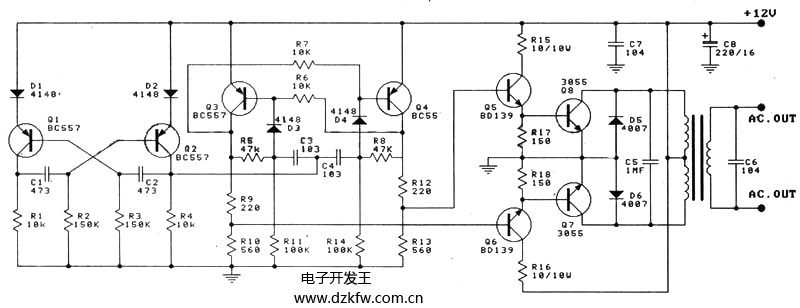

When Use The Electric Appliances That Want 220V AC 50HZ, Which Have Small-Sized About 100Watt Not Exceed. By When You Apply Outside Home, As A Result Have To Have Mini Power Inverter About 100Watt, Perform Modify From Work Electricity Forces Of Battery 12V Give Tall Fair The Work. If You Are New User Electronics Or Want To Economize Or Want To Build Electronics Project Use By Oneself. I Begs For To Advise This Circuit , Because It Uses , Transistor Number BC557 Or The Number Replaces, Perform Oscillator Generator. Then Have Power Transistor 2N3055 Numbers Perform To Drive Coil Transformer For Converter Voltage Give Tall Go Up 220V AC 50HZ At The Electric Power About 100 Watt Not Exceed. When Apply To Transformer About 2A-3A. Picture Circuit Detail And Like Model PCB Board.
