Program Description: This program reads a light detecting resistor thru an internal ADC and stores the value,
after scaling it, to eeprom.  This ADC value is sent to a PWM channel with attached led.  This is essentially a data logger

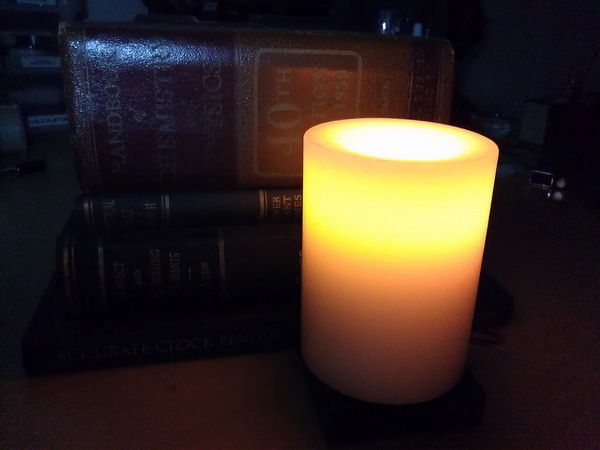

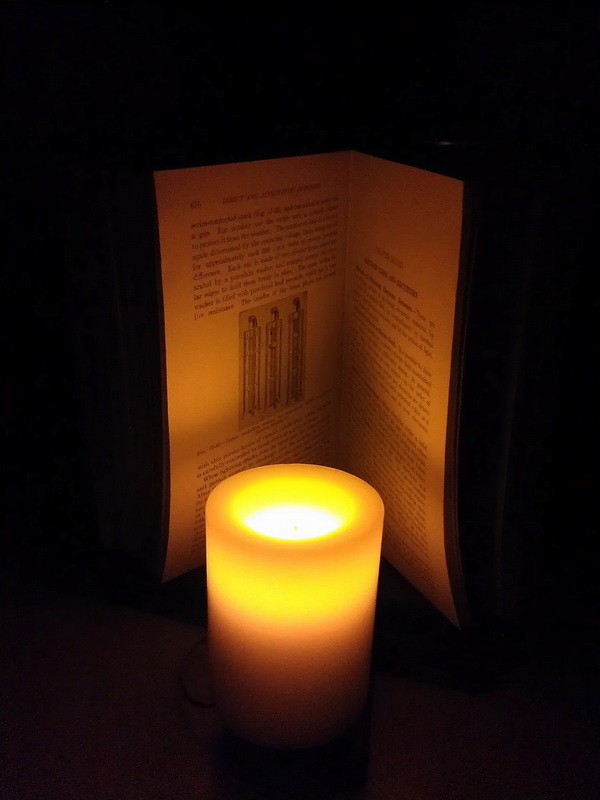

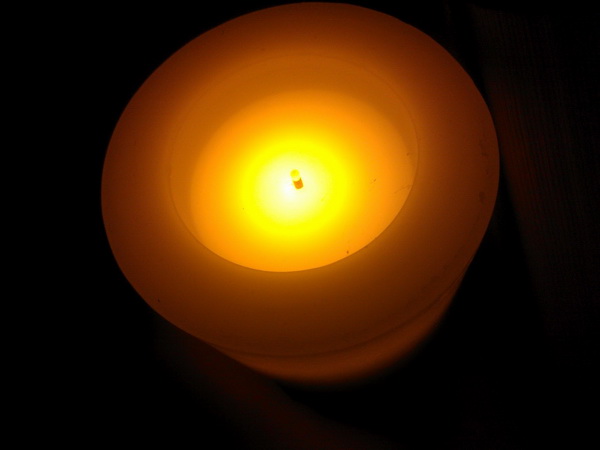

for light and replay by LED.  If, if you aim the LDR at a flickering candle during its recording phase, you have a flickering
led candle.

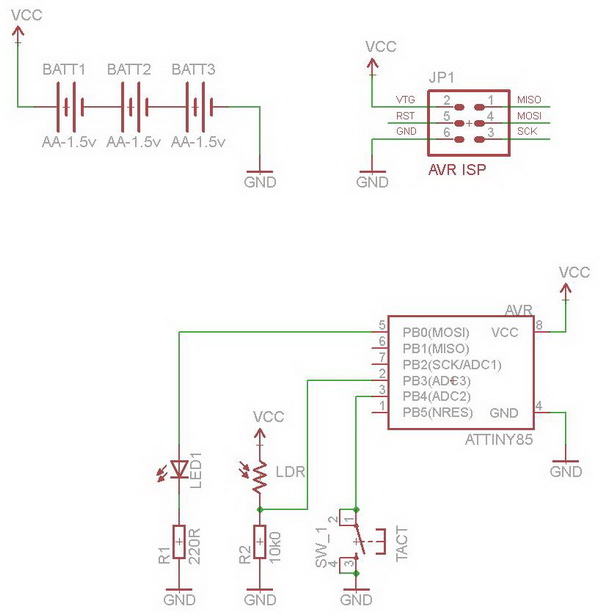

A circuit description and other details can be found at http://petemills.blogspot.com
Filename: ATTiny_Candle_v1.0.c
Author: Pete Mills
Int. RC Osc. 8 MHz; Start-up time PWRDWN/RESET: 6 CK/14 CK + 64 ms
*/
//********** Includes **********
#include
#include
#include
//********** Definitions **********
// LED for flame simulation
#define LED   PB0
#define LED_PORT PORTB
#define LED_DDR  DDRB
// Light Detecting Resistor for recording a live flame
#define LDR   PINB3
#define LDR_PORT PINB
#define LDR_DDR  DDRB
// Tactile Switch Input
#define SW1   PINB4
#define SW1_PORT PINB
#define SW1_DDR  DDRB
#define ARRAY_SIZE 500  // size of the flicker array
#define SAMPLE_RATE 100  // ms delay for collecting and reproducing the flicker
//********** Function Prototypes **********
void setup(void);
void toggle_led(void);
void program_flicker(void);
void led_alert(void);
void eeprom_save_array(void);
void eeprom_read_array(void);
void scale_array(void);
uint8_t get_adc(void);
uint8_t scale( uint8_t input, uint8_t inp_low, uint8_t inp_hi, uint8_t outp_low, uint8_t outp_hi);
uint8_t is_input_low(char port, char channel, uint8_t debounce_time, int input_block);
//********** Global Variables **********
uint8_t flicker_array[ ARRAY_SIZE ] = { 0 };
uint8_t EEMEM ee_flicker_array[ ARRAY_SIZE ] = { 0 };
int main(void)
{
uint16_t replay = 0;
setup();
eeprom_read_array();
 while(1)
 {
  if( is_input_low( SW1_PORT, SW1, 25, 250 ) )
  {
   // program the flicker
   // after entering and upon completion, a predetermined flash pattern will occur as described in led_alert()
   // aim the ldr at a flickering candle or any other light source ( like a laser ) you want to record during this time
   // and upon completion the values are stored to eeprom.  They are played back immediately as well
   // as being recalled from eeprom upon first start up
   led_alert();
   program_flicker();
   scale_array();
   eeprom_save_array();
   led_alert();
  }
  // replay the recorded flicker pattern
  OCR0A = flicker_array[ replay ];
  ++replay;
  if( replay >= ( ARRAY_SIZE - 13 ) ) // if the end of the stored array has been reached
  {
   replay = 0;          // start again from the beginning
   //led_alert();
  }
  _delay_ms( SAMPLE_RATE );
  _delay_ms( 3 );    // ADC Conversion time
 }
}
//********** Functions **********
void setup(void)
{
 //********* Port Config *********
 LED_DDR |= ( 1 << LED);   // set PB0 to "1" for output
 LED_PORT &= ~( 1 << LED );   // turn the led off
 LDR_DDR &= ~( 1 << LDR );   // set LDR pin to 0 for input
 LDR_PORT |= ( 1 << LDR );   // write 1 to enable internal pullup
 SW1_DDR &= ~( 1 << SW1 );   // set sw1 pin to 0 for input
 SW1_PORT |= ( 1 << SW1 );   // write a 1 to sw1 to enable the internal pullup
 //********** PWM Config *********
 TCCR0A |= ( ( 1 << COM0A1 ) | ( 1 << WGM01 ) | ( 1 << WGM00 ) ); // non inverting fast pwm
 TCCR0B |= ( 1 << CS00 ); // start the timer
 //********** ADC Config **********
 ADMUX |= ( ( 1 << ADLAR ) | ( 1 << MUX1 ) | ( 1 << MUX0 ) );  // left adjust and select ADC3
 ADCSRA |= ( ( 1 << ADEN ) | ( 1 << ADPS2 ) | ( 1 << ADPS1 ) ); // ADC enable and clock divide 8MHz by 64 for 125khz sample rate
 DIDR0 |= ( 1 << ADC3D ); // disable digital input on analog input channel to conserve power
}
void toggle_led()
{
    LED_PORT ^= ( 1 << LED );
}
uint8_t is_input_low( char port, char channel, uint8_t debounce_time, int input_block )
{
/*
This function is for debouncing a switch input
Debounce time is a blocking interval to wait until the input is tested again.
If the input tests low again, a delay equal to input_block is executed and the function returns ( 1 )
*/
 if ( bit_is_clear( port, channel ) )
 {
  _delay_ms( debounce_time );
   if ( bit_is_clear( port, channel ) )
   {
    _delay_ms( input_block );
    return 1;
   }
 }
 return 0;
}
uint8_t get_adc()
{
 ADCSRA |= ( 1 << ADSC );   // start the ADC Conversion
 while( ADCSRA & ( 1 << ADSC ));  // wait for the conversion to be complete
 return ~ADCH; // return the inverted 8-bit left adjusted adc val
}
void program_flicker()
{
 // build the flicker array
 for( int i = 0; i < ARRAY_SIZE; i++ )
 {
  flicker_array[ i ] = get_adc();
  _delay_ms( SAMPLE_RATE );
 }
}
void led_alert()
{
 // this is a function to create a visual alert that an event has occured within the program
 // it toggles the led 10 times.
 for( int i = 0; i < 10; i++ )
 {
  OCR0A = 0;
  _delay_ms( 40 );
  OCR0A = 255;
  _delay_ms( 40 );
 }
}
void eeprom_save_array()
{
 for( int i = 0; i < ARRAY_SIZE; i++ )
 {
  eeprom_write_byte( &ee_flicker_array[ i ], flicker_array[ i ] );
 }
}
void eeprom_read_array()
{
 for( int i = 0; i < ARRAY_SIZE; i++ )
 {
  flicker_array[ i ] = eeprom_read_byte( &ee_flicker_array[ i ] );
 }
}
uint8_t scale( uint8_t input, uint8_t inp_low, uint8_t inp_hi, uint8_t outp_low, uint8_t outp_hi)
{
return ( ( ( input - inp_low ) * ( outp_hi - outp_low ) ) / ( ( inp_hi - inp_low ) + outp_low ) );
}
void scale_array()
{
 uint8_t arr_min = 255;
 uint8_t arr_max = 0;
 uint8_t out_low = 20;
 uint8_t out_high = 255;
 // find the min and max values
 for( int i = 0; i < ARRAY_SIZE; i++ )
 {
  if( flicker_array[ i ] < arr_min )
   arr_min = flicker_array[ i ];
  if( flicker_array[ i ] > arr_max )
   arr_max = flicker_array[ i ];
 }
 // now that we know the range, scale it
 for( int i = 0; i < ARRAY_SIZE; i++ )
 {
  flicker_array[ i ] = scale( flicker_array[ i ], arr_min, arr_max, out_low, out_high );
 }
