會員注冊CA1458，CA1558（雙運放）;CA741C，CA741，LM741（單運放）是高增益運算放大器，用于軍事，工業和商業應用.這類單片硅集成電路器件提供輸出短路保護和閉鎖自由運作。這些類型還具有廣泛的共同模式，差模信號范圍和低失調電壓調零能力與使用適當?shù)碾娢弧?0kΩ電位器是用于抵消調零類型CA741C，CA741（見圖4 ）
類型CA1458，CA1558沒有具體的終端抵消調零。每一類運放包括一個差分輸入放大器有效驅動增益和發射極跟隨互補輸出。
技術數據類型與相應的臺灣CA品牌同類型。

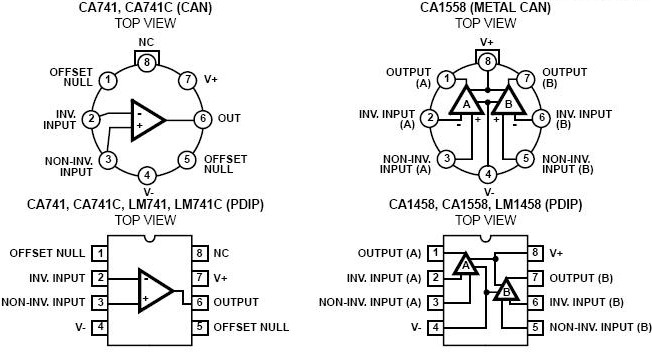

圖1 CA741C，CA741，LM741封裝管腳圖 圖2 CA1458，CA1558 ，LM1458封裝引腳功能圖
上圖為金屬罐形封裝 下圖為DIP塑封
CA741,CA741C,LM741,LM741C芯片引腳和工作說明：
1和5為偏置(調零端)，2為正向輸入端，3為反向輸入端，4接地，6為輸出，7接電源，8空腳
CA1458, CA1558, LM1458：芯片引腳和工作說明
1輸出端A 2反向輸入端A 3正向輸入端A 4接地 5正向輸入端B 6反向輸入端B 7輸出端B 8電源+

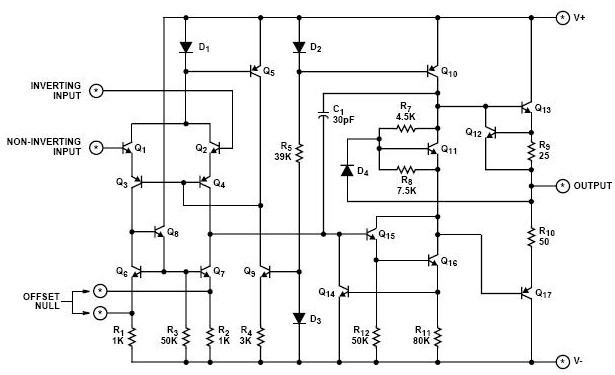

圖3 內部電路圖
Absolute Maximum Ratings絕對最大額定值
| 參數 | 項目 | 數值 | 單位 |
| 電源電壓 | CA741C, CA1458, LM741C, LM1458 | 36 | V |
| CA741, CA1558, LM741 | 44 | V | |
| Differential Input Voltage差分輸入電壓 | 30 | V | |
| Input Voltage輸入電壓種類 | +/- | - | - |
| Maximum Junction Temperature (Plastic Package)最大結溫（塑料包裝） | - | 150 | ℃ |
| Maximum Junction Temperature (Can Package)最大結溫（金屬罐封裝） | - | 175 | ℃ |
| Temperature Range工作溫度范圍 | CA741, CA1558, LM741 | -55 - 125 | ℃ |
| CA741C, CA1458, LM741C, LM1458 | 0-70 | ℃ |
Ordering Information訂購信息
|
PART NUMBER零件編號 |
TEMP 溫度. RANGE (oC) | PACKAGE 封裝 | PKG. NO. |
| CA0741E | -55 to 125 | 8 Ld PDIP 單運放 | E8.3 |
| CA0741CE | 0 to 70 | 8 Ld PDIP 單運放 | E8.3 |
| CA1458E | 0 to 70 | 8 Ld PDIP 雙運放 | E8.3 |
| CA1558E | -55 to 125 | 8 Ld PDIP 雙運放 | E8.3 |
| CA0741T | -55 to 125 | 8 Pin Metal Can 單運放 | T8.C |
| CA0741CT | 0 to 70 | 8 Pin Metal Can 單運放 | T8.C |
| CA1558T | -55 to 125 | 8 Pin Metal Can 雙運放 | T8.C |
| LM741N | -55 to 125 | 8 Ld PDIP 單運放 | E8.3 |
| LM741CN | 0 to 70 | 8 Ld PDIP 單運放 | E8.3 |
| LM1458N | 0 to 70 | 8 Ld PDIP 雙運放 | E8.3 |
Electrical Specifications Typical Values Intended Only for Design Guidance, VSUPPLY = ±15V 電氣規格典型值只用于設計指導， VSUPPLY = ± 15V
| PARAMETER參數 |
SYMBOL 符號 |
TEST CONDITIONS 測試條件 |
TYPICAL VALUE (ALL TYPES)典型值(所有類型) |
UNITS 單位 |
| Input Capacitance 輸入電容 | CI | - | 1.4 |
pF |
| Offset Voltage Adjustment Range 失調電壓調整范圍 | - | - | ±15 |
mV |
| Output Resistance 輸出電阻 | RO | - | 75 |
Ω |
| Output Short Circuit Current 輸出短路電流 | - | - | 25 |
mA |
| Transient Response Rise Time 瞬態響應上升時間 | tr | 單位增益, VI = 20mV, RL = 2kΩ, CL ≤ 100pF | 0.3 |
μs |
| Overshoot 過沖電壓 | O.S. | 5.0 |
% | |
| Slew Rate (Closed Loop) 壓擺率（閉環） | SR | RL ≥ 2kΩ | 0.5 |
V/μs |
| Gain Bandwidth Product 帶寬增益 | GBWP | RL = 12kΩ | 0.9 |
MHz |
Electrical Specifications For Equipment Design, VSUPPLY = ±15V電氣規范設備設計， VSUPPLY = ± 15V
| PARAMETER參數 |
TEST CONDITIONS測試條件 |
TEMP 溫度(℃) |
(NOTE 4) CA741, CA1558, LM741 | (NOTE 4) CA741C, CA1458, LM741C, LM1458 |
UNITS 單位 | ||||
| 最小 | 典型 | 最大 | 最小 | 典型 | 最大 | ||||
| Input Offset Voltage 輸入失調電壓 | RS ≤ 10kΩ | 25 | - | 1 | 5 | - | 2 | 6 |
mV |
| Full | - | 1 | 6 | - | - | 7.5 | mV | ||
| Input Common Mode Voltage Range 輸入共模電壓范圍 | - | 25 | - | - | - | ±12 | ±13 | - | V |
| Full | ±12 | ±13 | - | - | - | - | V | ||
| Common Mode Rejection Ratio 共模抑制比 | RS ≤ 10kΩ | 25 | - | - | - | 70 | 90 | - | dB |
| Full | 70 | 90 | - | - | - | - | dB | ||
| Power Supply Rejection Ratio 電源抑制比 | RS ≤ 10kΩ | 25 | - | - | - | - | 30 | 150 | μV/V |
| Full | - | 30 | 150 | - | - | - | μV/V | ||
| Input Resistance輸入阻抗 | - | 25 | 0.3 | 2 | - | 0.3 | 2 | - | MΩ |
Electrical Specifications For Equipment Design, VSUPPLY = ±15V (Continued）電氣規范設備設計， VSUPPLY = ± 15V
| PARAMETER 參數 | TEST CONDITIONS測試條件 | TEMP 溫度(℃) |
(NOTE 4) CA741, CA1558, LM741 |
(NOTE 4) CA741C, CA1458, LM741C, LM1458 |
UNITS 單位 | ||||
| 最小 | 典型 | 最大 | 最小 | 典型 |
最大 | ||||
| Input Bias Current 輸入偏置電流 | - | 25 | - | 80 | 500 | - | 80 | 500 | nA |
| Full | - | - | - | - | - | 800 | nA | ||
| -55 | - | 300 | 1500 | - | - | - | nA | ||
| 125 | - | 30 | 500 | - | - | - | nA | ||
| Input Offset Current輸入失調電流 | - | 25 | - | 20 | 200 | - | 20 | 200 | nA |
| Full | - | - | - | - | - | 300 | nA | ||
| -55 | - | 85 | 500 | - | - | - | nA | ||
| 125 | - | 7 | 200 | - | - | - | nA | ||
| Large Signal Voltage Gain 大信號電壓增益 | RL ≥ 2kΩ | 25 | 50,000 | 200,000 | - | 20,000 | 200,000 | - | V/V |
| VO = ±10V | Full | 25,000 | - | - | 15,000 | - | - | V/V | |
| Output Voltage Swing輸出電壓擺幅 | RL ≥10kΩ | 25 | - | - | - | ±12 | ±14 | - | V |
| Full | ±12 | ±14 | - | - | - | - | V | ||
| RL ≥ 2kΩ | 25 | - | - | - | ±10 | ±13 | - | V | |
| Full | ±10 | ±13 | - | ±10 | ±13 | - | V | ||
| Supply Current 電源電流 | - | 25 | - | 1.7 | 2.8 | - | 1.7 | 2.8 | mA |
| -55 | - | 2 | 3.3 | - | - | - | mA | ||
| 125 | - | 1.5 | 2.5 | - | - | - | mA | ||
| Device Power Dissipation消耗功率 | - | 25 | - | 50 | 85 | - | 50 | 85 | mW |
| -55 | - | 60 | 100 | - | - | - | mW | ||
| 125 | - | 45 | 75 | - | - | - | mW | ||
|

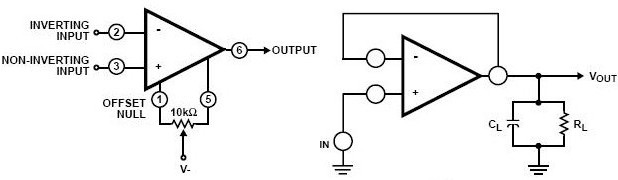

圖4 CA741C，CA741，LM741失調電壓調整電路 圖5 瞬態響應測試電路 CA741C，CA741，LM741 應用電路： |
|
圖6 12V的電池監視器 圖7 低功耗放大器 |
|

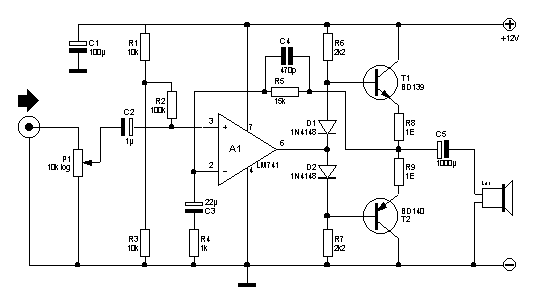

圖8 741驅動三極管的5瓦功率放大器 |
|

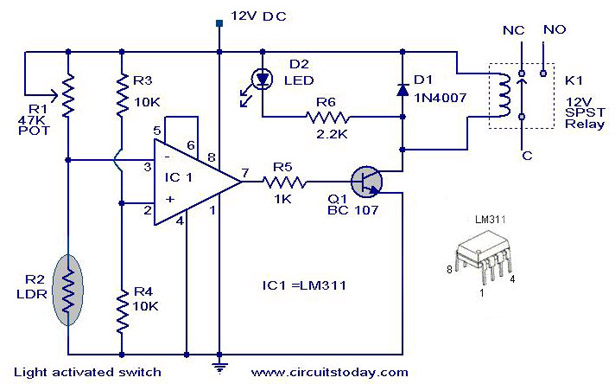

圖9 自動感光電路圖 |
|

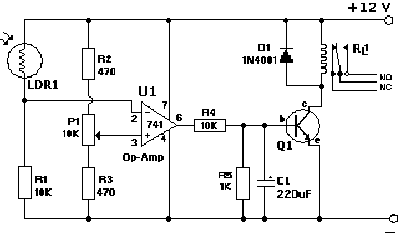

圖10 夜間自動感光電路圖 |
|
圖11 聲音探測器 |
|

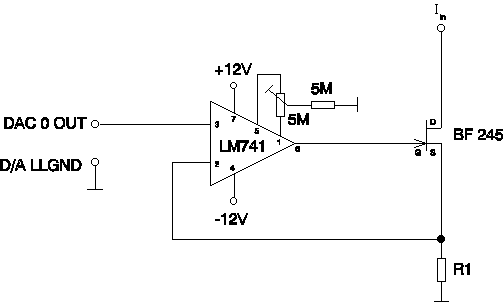

圖12 數字/模擬輸出接口電路 |
|

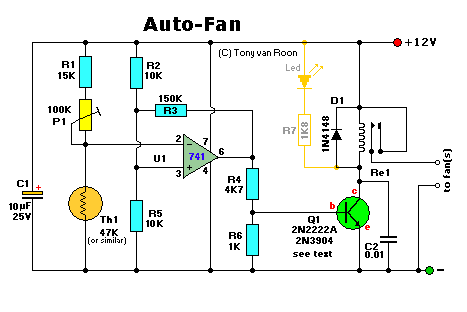

圖13 自動溫控風扇電路 |
